Explainer: Our atmosphere — layer by layer

Explore the air, from Earth’s surface to the wispy edges where bits escape to outer space

an aerial photo of the Earth's surface and the atmosphere

A view of Earth’s cloudscape and the rest of our atmosphere taken from a height of more than 30,000 feet. Not visible in such photos are the atmosphere’s many layers and how their features differ as they reach up and into outer space.

AleksandarGeorgiev/E+/Getty Images

Earth’s atmosphere is all around us. Most people take it for granted. But don’t. Among other things, it shields us from radiation and prevents our precious water from evaporating into space. It keeps the planet warm and provides us with oxygen to breathe. In fact, the atmosphere makes Earth the livable, lovable home sweet home that it is.

The atmosphere extends from Earth’s surface to more than 10,000 kilometers (6,200 miles) above the planet. Those 10,000 kilometers are divided into five distinct layers. From the bottom layer to the top, the air in each has the same composition. But the higher up you go, the further apart those air molecules are.

Ready to reach for the sky? Here’s an overview, layer by layer:

Troposphere: Earth’s surface to between 8 and 14 kilometers (5 and 9 miles)

Go ahead, stick your head right into the troposphere (TROH-poh-sfear). This lowest layer of the atmosphere starts at the ground and extends 14 kilometers (9 miles) up at the equator. That’s where it’s thickest. It’s thinnest above the poles, just 8 kilometers (5 miles) or so. The troposphere holds nearly all of Earth’s water vapor. It’s where most clouds ride the winds and where weather occurs. Water vapor and air constantly circulate in turbulent convection currents. Not surprisingly, the troposphere also is by far the densest layer. It contains as much as 80 percent of the mass of the whole atmosphere. The further up you go in this layer, the colder it gets. Want snow in summer? Head to where the upper troposphere bathes the highest peaks. The boundary between the troposphere and the next layer up is known as the tropopause.

Stratosphere: 14 to 64 km (9 to about 31 miles)

Unlike the troposphere, temperatures in this layer increase with elevation. The stratosphere is very dry, so clouds rarely form here. It also contains most of the atmosphere’s ozone, triplet molecules made from three oxygen atoms. At this elevation, ozone protects life on Earth from the sun’s harmful ultraviolet radiation. It’s a very stable layer, with little circulation. For that reason, commercial airlines tend to fly in the lower stratosphere to keep flights smooth. This lack of vertical movement also explains why stuff that gets into in the stratosphere tends to stay there for a long time. That “stuff” might include aerosol particles shot skyward by volcanic eruptions, and even smoke from wildfires. This layer also has accumulated pollutants, such as chlorofluorocarbons (Klor-oh-FLOR-oh-kar-buns). Better known as CFCs, these chemicals can destroy the protective ozone layer, thinning it greatly. By the top of the stratosphere, called the stratopause, air is only a thousandth as dense as at Earth’s surface.

a photo of the atmosphere from the International Space Station
In this image taken from the International Space Station, the lowest layer of the atmosphere — the troposphere — appears orange. Above in blue is the bottom of the stratosphere. NASA

Mesosphere: 64 to 85 km (31 to 53 miles)

Scientists don’t know quite as much about this layer. It’s just harder to study. Airplanes and research balloons don’t operate this high and satellites orbit higher up. We do know that the mesosphere (MAY-so-sfere) is where most meteors harmlessly burn up as they hurtle towards Earth. Near the top of this layer, temperatures drop to the lowest in Earth’s atmosphere — about -90° Celsius (-130° Fahrenheit). The line marking the top of the mesosphere is called, you guessed it, the mesopause. If you ever travel that far, congratulations! You are officially a space traveler — aka astronaut — according to the U.S. Air Force.

The mesopause is also known as the Karman line. It’s named for the Hungarian-born physicist Theodore von Kármán. He was looking to determine the lower edge of what might constitute outer space. He set it at about 80 kilometers (50 miles) up. Some agencies of the U.S. government have accepted that as defining where space begins. Other agencies argue this imaginary line is a bit higher: at 100 kilometers (62 miles).

The ionosphere is a zone of charged particles that extends from the upper stratosphere or lower mesosphere all the way to the exosphere. The ionosphere is able to reflect radio waves; this allows radio communications.

an animated image showing the earth as seen from the ISS during a night flyover
Time-lapse image of Earth showing the atmosphere, from the International Space StationNASA

Thermosphere: 85 to 600 km (53 to 372 miles)

The next layer up is the thermosphere. It soaks up x-rays and ultraviolet energy from the sun, protecting those of us on the ground from these harmful rays. The ups and downs of that solar energy also make the thermosphere vary wildly in temperature. It can go from really cold to as hot as about 1,980 ºC (3,600 ºF) near the top. The sun’s varying energy output also causes the thickness of this layer to expand as it heats and to contract as it cools. With all the charged particles, the thermosphere is also home to those beautiful celestial light shows known as auroras. This layer’s top boundary is called the thermopause.

Exosphere: 600 to 10,000 km (372 to 6,200 miles)

The uppermost layer of Earth’s atmosphere is called the exosphere. Its lower boundary is known as the exobase. The exosphere has no firmly defined top. Instead, it just fades further out into space. Air molecules in this part of our atmosphere are so far apart that they rarely even collide with each other. Earth’s gravity still has a little pull here, but just enough to keep most of the sparse air molecules from drifting away. Still, some of those air molecules — tiny bits of our atmosphere — do float away, lost to Earth forever.

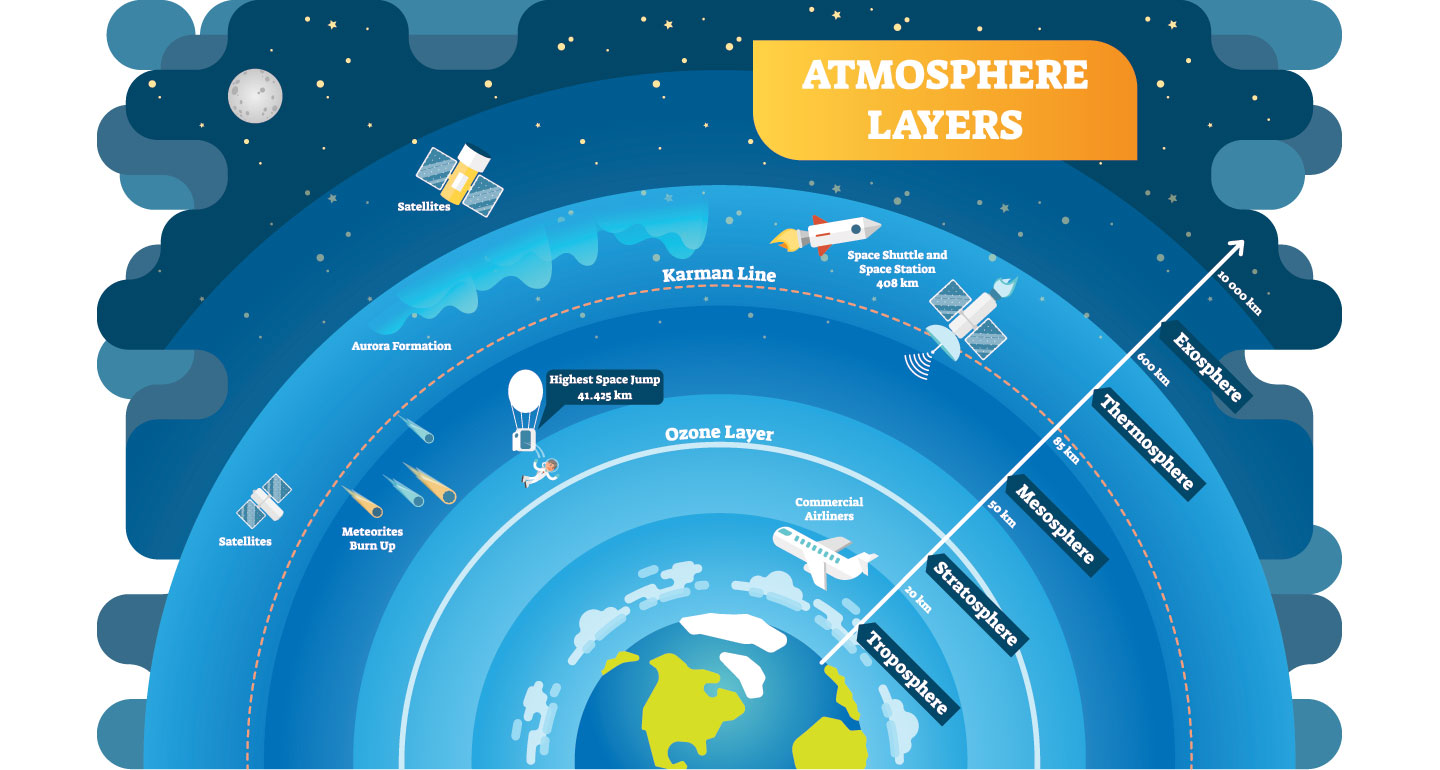

a diagram showing the layers of the atmosphere
As it rises out toward space, Earth’s atmosphere changes in density and much more. The depth of each layer can vary by the day and the latitude and are depicted here artistically (not drawn to scale).VectorMine/iStock/Getty Images
