New devices coming to assist the disabled

Technologies range from motorized gloves to stair-climbing wheelchairs

prosthetic arm

People with disabilities often rely on prosthetic devices to perform everyday tasks. A new competition for engineers may help speed the innovation of such devices, making them available more quickly and cheaply.

Alessandro Della Bella/ETH Zurich

WASHINGTON, D.C. — When someone suffers a devastating injury, everyday tasks can become difficult, if not impossible. A person who loses an arm or hand can’t grip and turn a doorknob. For someone in a wheelchair, even a small step can block their way. But on February 15, researchers at a major science meeting described a host of new devices being developed to overcome such physical limitations. Many are now undergoing early testing. They won’t be for sale soon. But one day in the not-too-distant future, advanced versions of these devices could make life easier for many people.

Take, for example, someone who has lost the use of their hand. That’s a problem more common than most people realize, says Kyu Jin Cho. He’s a mechanical engineer at Seoul National University in Korea. About 500,000 people end up in a wheelchair each year. Of those, around half also suffer injuries to their hand, Cho notes. And that number doesn’t include the people who sustain injuries just to their hands.

To deal with this, Cho and his team have designed a glove made from a flexible, rubberlike material. It has three fingers that fit over the wearer’s thumb, index finger and middle finger. Wires attached to those fingers can be moved by a small motor. The motor, controlled by a simple switch, pulls on the wires to open and close the hand. The result is a glove that can help people grip objects.

prosthetic fingers glove

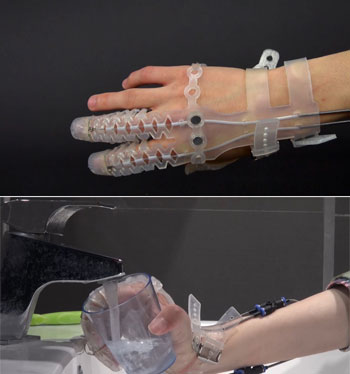

The Exo-Glove Poly (top) fits over the thumb and two fingers of a person’s hand and can help them perform simple, but previously impossible, tasks such as filling up a water glass (bottom). Seoul National University Biorobotics Lab
Cho’s group call’s its invention the Exo-Glove Poly. Exo is from the Greek for “outside.” It refers to the fact that this glove is worn outside the user’s body. Poly, Greek for “many,” refers to the fact that the glove’s rubberlike material is a polymer .

Other researchers have designed gloves that pick up nerve impulses from a user’s arm muscles to help control a glove’s motions. But those earlier devices were relatively complicated. If produced, they would be costly, notes Cho. People who have tested the Exo-Glove Poly like its simplicity, he says. Another benefit: It’s waterproof. That means users can wash their hands or clean dishes while wearing it. The glove also can be removed and washed when it gets dirty.

This Korean team was among research centers describing new technologies, last week, for people with serious physical handicaps. They showcased their devices, here, at the annual meeting of the American Association for the Advancement of Science (AAAS).

Helping paralyzed legs pedal a bike

Some people suffer spinal injuries that cause their arms or legs to become paralyzed. In many cases, the injury severs connections between nerves in the arms or legs and the spinal cord or brain. Now when the brain tells the limbs to move or the nerves’ pick up a sensation of pain, that message can’t get through to its target, notes Ronald Triolo. He works at Case Western Reserve University in Cleveland, Ohio, as a biomedical engineer. These researchers use science and math to create things like medical devices.

Triolo’s team is looking to assist the nerves and muscles that remain healthy but are no longer connected to each other. To do that, they have designed an electronic device to stimulate the nerves. It’s similar to the way a pacemaker zaps a heart to trigger its contractions. Their device instead triggers leg movements.

The first step involves surgery to implant electrodes next to nerves in the paralyzed leg. Doctors can then send small electrical impulses to make one or more muscles contract. With just one electrode, doctors can make a muscle trigger a simple motion.

Actions such as walking, or opening and closing a hand, however, are very complex. They require the coordinated motions of many muscles. Not only would many switches be needed, but they also would need to be stimulated in a precise sequence, or pattern. That means a simple on/off switch like the one used in Cho’s Exo-Glove Poly wouldn’t be suitable to help someone walk. Instead, a person would need a small computer.

recumbent bicycle
Even people whose legs are paralyzed (as here) can ride a bike — if their muscles are stimulated by small shocks in the right sequence. Alessandro Della Bella/ETH Zurich
Triolo’s team has come up with just such a device. Using the right sequence of electrical signals to stimulate a paralyzed person’s leg, it can make the motions that would be needed to ride a bike.

A paralyzed person might not have the balance to ride a two-wheeled bike or the ability to stop and get off safely. But the electronic device driving their leg muscles might make tooling around on a three- or four-wheeled bike possible.

Or the user might ride a stationary bike to get some exercise. Even that would be a good thing, Triolo notes. Studies have shown the exercise would increase blood flow in ways that could help keep muscles from wasting away due to lack of use. That wasting is known as atrophy (AA-troh-fee).

Cutting the delays

Often it takes years from when an engineer first has an idea to the time a useful product becomes available for sale. That delay can be especially frustrating when the device is intended to help someone who is disabled. But a new engineering competition might help speed innovations from the lab to the people in need.

It is called Cybathlon (Sy-BATH-lon). The name plays off of the idea that this is a contest for cyber-systems. This event is intended to prompt new and more muscle-assisting research across an array of disciplines (such as medicine, robotics, engineering and chemistry), says Robert Riener. He’s a mechanical engineer at the Swiss Federal Institute of Technology in Zurich. He’s also an expert in designing prosthetic limbs. These devices take the place of missing body parts.

The first Cybathlon is scheduled for October 8 in Zurich. There, 80 teams will compete, says Riener. Teams can be any size but must include a disabled person to demonstrate a candidate device that has been designed for his special needs. Already, more than 70 teams have registered. They come from all continents except Antarctica.

The competition will feature events for six types of technologies. One event will involve riding a three- or four-wheeled bike over a distance of about 800 meters (0.5 mile). Other than getting a small boost from launching down a short ramp, the bikes must be powered by the paralyzed person pumping the pedals. Their muscles must be controlled by electronic devices similar to those being developed by Triolo and his team.

stair-climbing wheelchair
Researchers are developing wheelchairs that can climb up and down stairs, as shown in this practice session for an engineering competition to be held later this year. Alessandro Della Bella/ETH Zurich
Other events involve using various types of prosthetic limbs or hands to perform everyday tasks, such picking up a ball or clothes-pinning a piece of paper to a rope. Yet others call for stair-climbing wheelchairs or motorized braces that help power someone’s gait as he or she walks through a simple obstacle course. In one event, severely paralyzed people will even control a video game with brain signals delivered by sensors from a cap covering their heads.

“The competition isn’t focused on strength or speed,” explains Riener. “It’s all about completing tasks successfully.” Competitions such as this could help speed the design process for such assistive devices, he says. The events also are intended to raise awareness of the range of skills such robotic devices can offer.

For now, Riener plans to have a Cybathlon every four years. But if it is successful, maybe it could be held every two years, he notes.

And expanding the number of events would be very useful, says Cho. People have many sorts of disabilities, he notes. The more events there are, the more people that the competitors could eventually help.
