Virtual wounds: Computers probe healing

By giving virtual life to cells that ‘live’ in computers, scientists can probe how the body heals

grazed knee

While this accident victim is focusing on the pain associated with his knee wound, his body is focusing on sending out immune troops — cells that can kill and discard invading germs.

IS¬_ImageSource/ iStockphoto

When you fall off your bicycle, slamming your knee into the pavement, your attention focuses on the pain. But the rest of your body is focusing on something else. Your injury has just begun rallying a large number of your cells to do serious battle.

Under your bruises and scratches, an army of fighter cells begins mobilizing. In the next few minutes to days, these troops will blast apart the body’s damaged cells and kill any invading bacteria. Then a follow-up cadre of different troops — think of them as the clean-up crew — arrives to tidy up the broken bits and pieces. Finally, medics move in to rebuild and heal the damaged tissue.

Scientists refer to these activities on the body’s battlefields as inflammation. The process is managed by the immune system. They include one of the body’s most complex families of cells.

Those inflammatory cells are efficient. They have to be. Their mission is to protect your health by destroying sick or damaged cells — as well as any intruders — before any of them can take over and spread disease.

But in their rush to save the body, these immune troops may make a few mistakes.

“Let’s say that you are a country and you are attacked,” says Gary An. He’s a surgeon and researcher at the University of Chicago, in Illinois. “You would kind of like to only kill the people who are your enemy,” he says. So your immune system drops what An calls “bombs” next to the enemy cells. These bombs are chemicals that break apart the problem cells.

But sometimes the bombs accidentally damage healthy cells, too. “You try to minimize that damage as much as you can,” he says. “But the damage needs to be strong enough to kill the invaders.” All too often, he says, this means “You end up destroying parts of your own country. That’s kind of what inflammation is.”

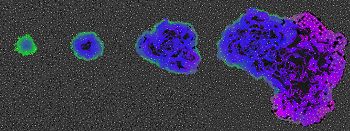

Growth of an invasive tumor (from left to right) in an agent-based model. Green cells are the least aggressive; pink are most aggressive. The most aggressive cells win out, over time.That allows the tumor to expand into surrounding tissue. Alexander Anderson, Moffit Cancer Center
When the immune system reacts too much or too little, it can cause many types of disease. Diabetes, cancer, Alzheimer’s disease and even obesity — all have been linked to inflammation gone wrong.

So scientists like An are trying to find better ways to understand the immune system. To do that, they’re borrowing a method pioneered in video games and the movies. It’s called agent-based modeling. Scientists study the process by essentially playing a computer game that attempts to mimic — or “model” — how the body works.  They do this by creating virtual cells or “agents” that can interact inside the computer program.

Like a movie

It works like this. Imagine you’re helping make a movie. The director wants to shoot a battle scene with thousands of soldiers. Using real actors would be too expensive. So you propose using virtual soldiers. These can be created on a computer using special-effects software. Still, it would take forever to individually program each virtual soldier to participate in the scripted battle.

This challenge had to be solved for the movie The Lord of the Rings. To help create realistic battles using a large cast of virtual actors, the movie’s creators hired a computer company called WETA Digital. The company set up an agent-based model on a computer. The agents included virtual orcs, dwarves, humans and elves. The programmers gave each type of agent a set of rules.

Rules might tell an agent when to lift its sword, step backward, team up with a friend — or even do nothing. If an orc met a dwarf, for instance, the rule might tell the orc to swing its sword. When an orc instead met an elf, the rules might here instruct it to call in a friend to help in the fight. Each agent received hundreds of rules.

Yet when the designers hit “Go,” they got a surprise. The agents in the program didn’t just start fighting. One group of fighters banded together and fled the battleground. It was as if they were too scared to go on. No single rule told them to do this. The virtual fighters just combined several rules to make up their own new behavior.

Studying a single bird would not let biologists know that a flock of them might migrate in a V-formation, as here. Those kinds of insights may show up in a type of computer program known as an agent-based model. zizar2002/ iStockphoto
Unexpected behaviors like this often emerge in agent-based modeling. “The analogy I love to use is Canada geese flying in the sky,” says Shayn Peirce. She’s a researcher at the University of Virginia in Charlottesville. “You would never know, just by looking at that one agent, that when that goose gets together with its flock, it forms a magical V-shaped flying formation.”

Like An, Peirce uses agent-based modeling to study the immune system. Instead of orcs and elves, her agents are different types of immune cells. She assigns them rules and then lets them loose in a computerized “environment” that mimics the body. Amazingly, the agents indeed imitate how cells behave in the body, despite “living” in a computer. Scientists refer to this whole operation as a computer model.

“The cool thing about agent-based modeling is that it can allow us to have a ‘playground’ or a ‘sandbox’ where we can go in and make changes at the press of a button,” Peirce explains.

The war in your cells

Scientists usually study different parts (or systems) of the body in isolation — one part at a time. Then they probe it through a series of laboratory tests. With luck, this might show how it works. For instance, suppose you want to know if a drug will help cure brain cancer. You might put cancer cells and your drug into a test tube. If the drug kills the cancer cells, you might try the drug on normal brain cells in another test tube. If that drug doesn’t harm the normal cells, the drug might point to a cure.

But as in The Lord of the Rings, unexpected things can happen inside the body. For example, the drug might kill cancer cells, but also accidentally block normal brain cells from signaling other cells. Here, the brain might look healthy, but be unable to do its job.

In the immune system, each cell depends on all the other cells. Like players on a baseball team, the cells cooperate in ways that can’t be predicted by looking at just one player.

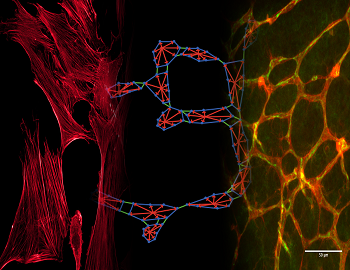

When the body needs to deliver immune cells to an injury, new blood vessels form. Here, an agent-based model imitates that. It shows what happens when mouse eye tissue (on left) gets blood vessels from developing eye tissue (on right). Joseph Walpole, University of Virginia
Let’s go back to the example of falling off your bike. Scraping your leg against the rough pavement rips open the skin. This provides a gaping entry to bacteria that had been present on the pavement.

The first immune cells arriving to do battle are neutrophils (NU-troh-fils). These are a type of white blood cell. The bloodstream ferries them directly to the wound. The neutrophils lob chemical bombs at the bacteria, killing them and any damaged body cells.

These chemical bombs are not, however, very precise. They kill their targets — and neighboring healthy cells. So now, “You have to get someone to come in and clean it up,” says Joseph Walpole. He’s a graduate student in biomedical engineering who is studying with Peirce at the University of Virginia. If the damage is not cleaned up, those neutrophils will keep throwing bombs. In fact, any time a neutrophil sees damage, it throws another bomb.

Enter the janitors of the immune system: macrophages (MAK-row-FAY-zhehs). Like amoebas, these cells engulf and eat debris. Once the macrophages have gobbled up damaged cells and germs, the neutrophils view their job as over. As soon as the neutrophils toss their last bomb and the macrophages finish cleaning up, both cell types leave the battleground. Now, the area can begin to heal. Newly forming blood vessels deliver healer cells, such as platelets and fibroblasts. These cells build new tissue and heal the area.

Modeling those interactions — and maybe chaos

A researcher might activate bacteria, neutrophils and macrophages in an agent-based model. The environment surrounding the three agents is a patch of virtual human tissue. Rules might tell the virtual neutrophil how fast to arrive, how big a chemical bomb to make and when to lob it. Rules for the germ might include how long it takes to die once a bomb hits it. The computer allows scientists to change these inputs and watch what happens each time they tweak one of the rules.

If the neutrophils don’t put out a big enough bomb, harmful bacteria will take over. If the macrophages don’t arrive fast enough, the neutrophils will do too much damage and destroy the tissue they were meant to protect. And like the runaway fighters in The Lord of the Rings, the virtual cells sometimes do unexpected things in the agent-based model. These behaviors help show scientists surprising new possibilities for how cells might actually behave deep inside us.

As in this computer model, runaway inflammation can occur in real life. For some serious injuries, there’s so much damage that cells like macrophages can’t keep up. The neutrophils get overenthusiastic: They go bomb-crazy and take out too many healthy cells. This kills the patient in a process called sepsis. Here, it’s not the wound but the patient’s own immune response that proves fatal.

This video shows an agent-based model of an immune cell receiving chemical signals from other cells. The cell surface (blue), or membrane, contains proteins (red) that receive signals (white). Receiver proteins bind to the signals and then pass them to large proteins called enzymes embedded in the cell membrane (light blue and green squares). The enzymes bring the signals into the cell to act as messages (green cones) that instruct the cell to do different tasks.

Gary An, Univ. of Chicago

“Neutrophils are pretty dumb,” says An. “They don’t have the ability to know enough is enough.”

In the real immune system, many other types of cells join the neutrophils and macrophages. Each sends the others signals and instructions. If things go wrong, panic can occur.

Scientists can make more complex models to imitate this destructive chaos. An uses such a model to study sepsis. Some agent-based models have even been able to imitate the formation of a cancerous tumor.

On the horizon

Once a virtual tumor exists, scientists can probe how the immune system responds to it. Researchers at the Moffit Cancer Center in Tampa, Fla., have done just that. Alexander Anderson and his co-workers added interactions between immune-system cells to their virtual tumor. Their computer program showed that whether a tumor grew or shrank depended on how quickly two types of macrophages showed up.

One type cooperates with cancer cells. The other tends to destroy them. This still-unpublished discovery suggests that creating drugs to boost the activity of the destructive macrophages might offer a new way to treat some cancers.

Of course, agent-based modeling can’t solve all of medicine’s questions. Scientists still need to work in the laboratory with real cells. The more scientists learn about how cells work in a Petri dish or test tube, the more realistically they can set rules for virtual tissues. In the same way, agent-based models can suggest new things to try in the lab.

Vic DiRita studies microbiology and immunology at the University of Michigan in Ann Arbor. Speaking of agent-based modeling, he says: “I don’t know that it will or should replace experimental biology. But I think it’s a very powerful approach.” In fact, he says, “It’s impressive to be able to follow so many different agents … when each one of them is acted on by so many different forces.”

Using such models, the University of Chicago’s An has uncovered important features about sepsis. Damaged cells send out a special chemical signal. It’s like a distress cry. This signal attracts neutrophils. Some scientists thought they could stop sepsis in its tracks by giving patients a drug to block the signal. And in laboratory experiments, the drug indeed stopped neutrophils from coming.

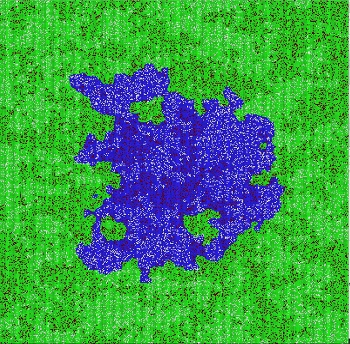

An agent-based model of a cancerous tumor (blue) near normal cells (green). By changing the model’s inputs, scientists can test how effective the immune cells are that fight the tumor (red) or cooperate with the tumor (white). Alexander Anderson, Moffit Cancer Center

But using agent-based modeling, An also discovered why the drug would not save a septic patient. “What you get at the end of the time you give the drug is a bunch of damaged tissue,” says An. And, he adds: “It’s not like it will fix itself.”

Once the drug wore off, neutrophils returned. Inflammation started anew. “That’s the kind of secondary effect that’s incredibly obvious once you use the model,” observes An.

When it comes to the immune system, “it’s not just a sum of the parts,” says Virginia’s Walpole. “It’s not enough to have all the pieces. Agent-based modeling provides the possibility of looking at the interaction between the parts.”
