Vision-ary high tech

Future devices may prevent or even undo vision loss due to disease

scleral contact lens

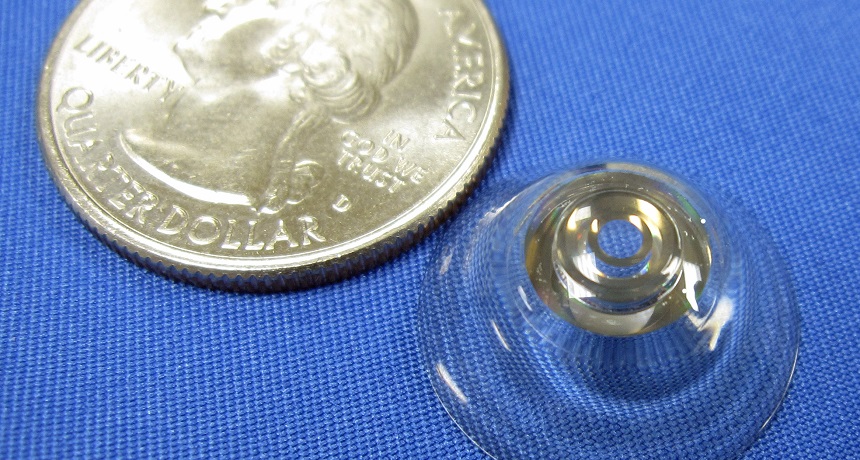

This contact lens (right), about the size of a U.S. quarter, can magnify a wearer’s vision 2.8 times. Such lenses would let a patient switch, in the wink of the eye, between normal and magnified vision.

Tremblay, EPFL Lausanne

SAN JOSE, Calif. — Telescopic contact lenses might one day zoom with a wink of the eye. It’s one of several emerging technologies that promise to improve, restore or preserve the vision of people with serious eye diseases.

The zoomable lenses are being developed at the Swiss Federal Institute of Technology in Lausanne. They include a tiny telescope that magnifies objects 2.8 times, says Eric Tremblay. This optical engineer is part of a team that is developing the lenses.

Tremblay described a prototype lens on February 13, here, during the annual meeting of the American Association for the Advancement of Science. He was among scientists at the meeting who discussed high-tech solutions for problems due to common eye diseases.

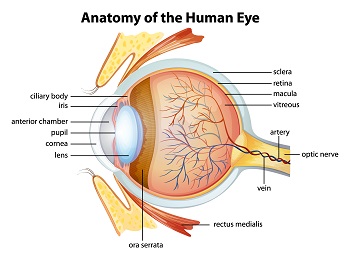

The anatomy of the human eye. blueringmedia/istockphoto
One of them, macular degeneration, is a leading cause of blindness in older adults. It affects the light-sensitive retina at the back of the eye. Gradually, the eye becomes damaged. This causes a slow loss of vision in the center of the eye’s field of view, known as the macula (hence the condition’s name). Over time, a blurred spot at the center of the eye enlarges and darkens.

The new Swiss telescopic lens would, whenever the wearer chooses, make the background of what a person sees appear larger. In that case, any blurred or dark spot would appear relatively smaller in the overall field of view. The lenses don’t have moving parts, like a zoom lens on a camera. Instead, the lenses have some parts that magnify the field of view and others that don’t. The lens wearer controls which parts of the lenses transmit light by using a special pair of glasses.

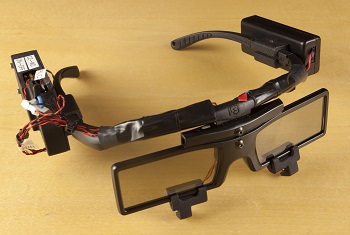

These glasses are designed to be paired with magnifying contact lenses. This system could help patients overcome vision problems due to macular degeneration. Tremblay, EPFL Lausanne
The glasses and lenses operate together to determine whether the wearer sees a magnified image. To do this, they harness a phenomenon called polarization. (Some types of sunglasses also use this same phenomenon to reduce glare.) The central part of the contact lens is polarized so that only light waves vibrating in a certain direction (up and down, for instance) pass through. A large ring around the rim of the lens, which also magnifies the image the wearer sees, transmits only light that vibrates in a different direction (maybe side to side, for example).

That difference in polarization is key. It lets the lens’ wearer choose to see light from either the center or the rim of the lens, but not both at the same time. That choice is made by winking one eye. (Software in the glasses can tell the difference between a deliberate wink of one eye and an involuntary blink by both eyes.) That wink switches the polarization of the material in the glasses. In one case, the glasses block light that would be transmitted through the center of the lens. Now it transmits light that enters the outer rim of the lens. This magnifies the wearer’s vision. Another wink switches the polarization. Now light that would travel through the outer rim of the lens is blocked. Only light hitting the center of the lens can pass through. So now, the wearer’s vision is unmagnified.

The contact lenses are 1.5 millimeters (0.06 inch) thick. For now, they can be worn only for an hour or so at a time. And that’s because oxygen cannot easily pass through them. The transparent layer forming the front of the eye — the cornea — requires oxygen. Future versions of the lenses may allow oxygen to pass through to the cornea. Or users might rely on eye drops that deliver oxygen directly to an eye’s surface.

Permanent fix in sight

Another technology promises a second solution to the problems associated with macular degeneration. Daniel Palanker is a physicist at Stanford University in California. He is helping develop this technology, which requires surgery. It could provide a more permanent (even if partial) improvement in vision, he reports.

The fix consists of tiny implantable devices that fill in for damaged eye cells. One day, doctors may implant a mosaic of these devices in the retina of patients with macular degeneration. Each device would be about 1 millimeter (0.04 inch) wide. That’s only around five times the width of the thickest human hair. Tiny electrical circuits that convert light into electrical current would cover the devices. Nerve cells in the retina would detect the current and then transfer it to the brain. In that way, the circuits would act like the light-sensitive cells that cover an undamaged retina.

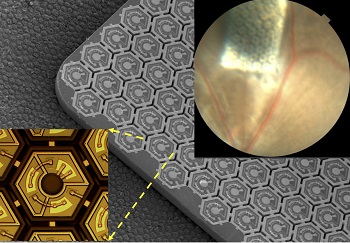

A special implant (seen inserted in a rat’s retina, upper right) could help restore vision in patients with macular degeneration. The implant’s tiny circuits (close-up at lower left) convert light into electricity. Palanker, Stanford University
Like the telescopic contact lenses, these implanted circuits also would be paired with special glasses. Any visible light streaming through the center of the lenses would pass through unaffected. But more light would be needed because the tiny circuits aren’t as sensitive as the eye’s natural light-gathering cells. To work, they need more light.

To provide this extra illumination, the researchers have mounted a camera onto the glasses. It studies the landscape and converts the light it receives into infrared wavelengths. It then boosts that light and projects it into a wearer’s eyes. (The patient’s remaining healthy cells don’t respond to infrared light. That means this bonus light won’t overwhelm any healthy cells.)

The implants don’t promise perfect vision. About 4,800 of the tiny circuits could fit into a square area of the retina measuring 5 millimeters (0.2 inch) on a side, Palanker’s team estimates. That’s about one-tenth the number of light-gathering cells in a similar-sized area of a healthy retina, Palanker says. That number could restore a patient’s vision to about 20/200. (In other words, that person could correctly read an eye chart at 20 feet that a person with normal vision could read from 200 feet away. Normal vision is 20/20.) If the team can shrink down the size of the circuits by nearly half, then a person’s vision might be restored to 20/120.

The tiny circuits produce different electrical signals than retinal cells are used to, Palanker notes. Still, a patient’s brain would likely learn to interpret them. “It might take a few months, but the brain can learn to merge the data,” he says.

Pressure check

In the future, yet another kind of contact lens might do more than simply change your vision. It could monitor another common eye disease: glaucoma.

In glaucoma, the fluid pressure inside the eye is higher than normal. Left untreated, that pressure can cause permanent damage to the optic nerve. This nerve carries electrical signals from the eye to the brain.

Glaucoma is especially dangerous because it usually causes no pain. As a result, patients may suffer permanent eye damage before realizing they have the disease, explains Giovanni Salvatore. He’s an electrical engineer at ETH Zurich, the Swiss Federal Institute of Technology in Zurich.

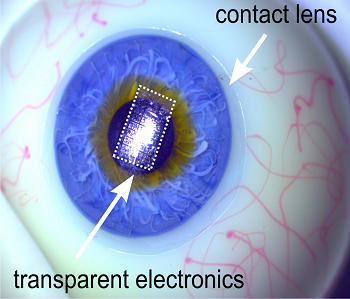

A small gauge attached to this contact lens (small rectangular patch of circuitry at center) can help doctors monitor the pressure inside an eyeball. Salvatore, ETH Zurich
Knowing that the pressure in the eye was beginning to build up could alert doctors so that they could take action before damage to the optic nerve occurs.

To get this early warning, Salvatore and his colleagues are developing a pressure gauge. Its electrical circuits would sit on a thin film that would be attached to a hard contact lens. The gauge is designed so that the electrical current flowing through its circuits changes when the film flexes. If pressure in the eyeball increases, the shape of the lens will distort. That, in turn, would cause measurable changes to the current in the gauge.

The gauge needs electricity to work. But the lens also must float loosely on the eye. Salvatore and his team are therefore designing a way to beam electricity wirelessly to the device. Batteries fitted into a transmitter mounted on a set of eyeglasses, for instance, might do the trick.

Right now, the team is fine-tuning its design. Later, the researchers will test it. That means this type of pressure sensor might be years away from reality. Still, it’s worth keeping an eye on this device, along with those being developed by Tremblay and Palanker. All show promise for helping the many millions of people at risk of vision loss from common eye diseases.
