Goopy tech leaves older 3-D printing in its wake

Speedy process creates objects using oxygen, ultraviolet light and liquid resin

3D printing

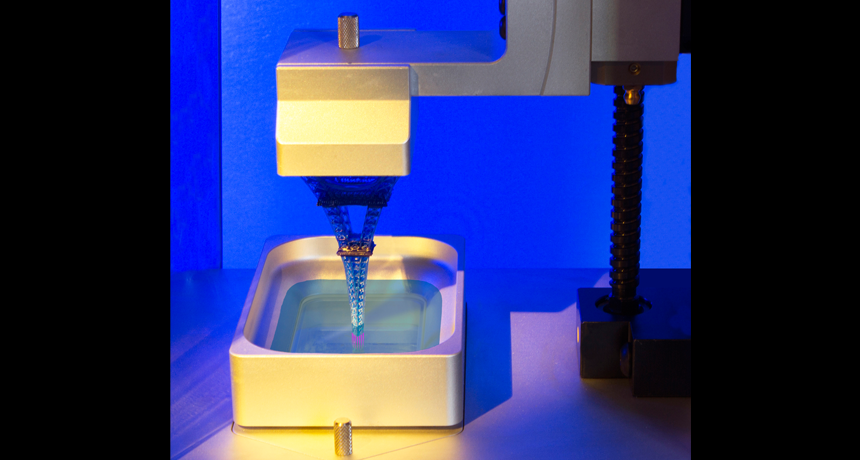

A little Eiffel Tower rises from goopy resin in just one hour, thanks to a new 3-D printing method that manipulates ultraviolet light and oxygen to create detailed objects.

Lars Sahl

A movie robot made of liquid metal that could take on any shape has inspired researchers to print three-dimensional objects from a puddle of goo.

The new 3-D printing method manipulates ultraviolet (UV) light and oxygen to fuse liquid resin into solid objects. Those objects rise out of a shallow basin of resin in just minutes. That is far less time than required with conventional 3-D printers. The new process is also more precise. Printers that use this technology could be used to make anything from aircraft parts to medical devices.

The system’s designers shared details of their new technology online March 16 in Science.

Inspiration for the printer came from the 1991 movie Terminator 2: Judgment Day. In the film, a robotic villain made of liquid metal assumes different shapes. Instead of metal, Joseph DeSimone and his colleagues chose to work with goopy resins. DeSimone is a polymer chemist at the University of North Carolina at Chapel Hill.

Polymers are substances whose molecules are made from long chains of repeating groups of atoms. In this new printer, liquid resin forms a hard polymer, a plastic, when zapped with UV light. Oxygen helps control the process by keeping some areas of the resin liquid at all times.

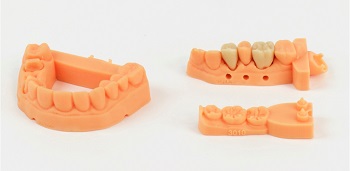

The printing technology could be used eventually to make custom replacement teeth on the spot at the dentist’s office. Carbon3D, Inc.
“They really thought about the chemical process,” says Lee Cronin. A chemist, he works at the University of Glasgow in Scotland. The speed and chemical tricks will “definitely move the field forward,” says Cronin, who was not involved in the new process.

Older 3-D printers work with “inks” made of plastic, metal, ceramic or other materials, even food and cells. Those printers lay down their ink, layer by layer. Eventually a solid object emerges. One problem with that approach is speed, DeSimone says. “I know of mushrooms that grow faster than 3-D printers print,” he says.

In their new approach, DeSimone and his colleagues filled a chamber with resin. A window at the bottom allows UV light and oxygen to pass through into the resin above. The oxygen penetrates only a short distance. Since oxygen prevents polymers from forming, the researchers call this oxygen-rich area a “dead zone.” Meanwhile, the UV light can travel deeper into the resin, past that dead zone.

The printer works when a metal plate is lowered into that sweet spot, one reachable only by the UV light. To print a 3-D object, the system projects a stream of UV light patterns. These patterns represent the template of the object to be printed. The light causes the polymers to start linking up on the metal plate. Gradually and steadily, the plate rises. As it does, more resin enters the sweet spot. More solidifies onto the bottom of the object. In short order, the desired object grows and takes shape.

3-D GOO GAME A new printing method can draw 3-D objects with a dunk in a liquid resin pool. Carbon3D, Inc.

Watching the printer at work recalls the T-1000 robot from Terminator 2: a solid, detailed object rising from a shallow puddle of ooze. The researchers have used the printer to create complex structures. These include a detailed model of the Eiffel Tower.

Materials engineer Joshua Pearce of Michigan Technological University in Houghton calls the printer’s mix of speed and precision “really impressive.”

Sales of the printers using the new 3-D technology could start this year.
