The future of crystal-based solar energy just got brighter

Tweaks make more efficient solar cells that can be printed or painted onto anything

paint-on perovskites

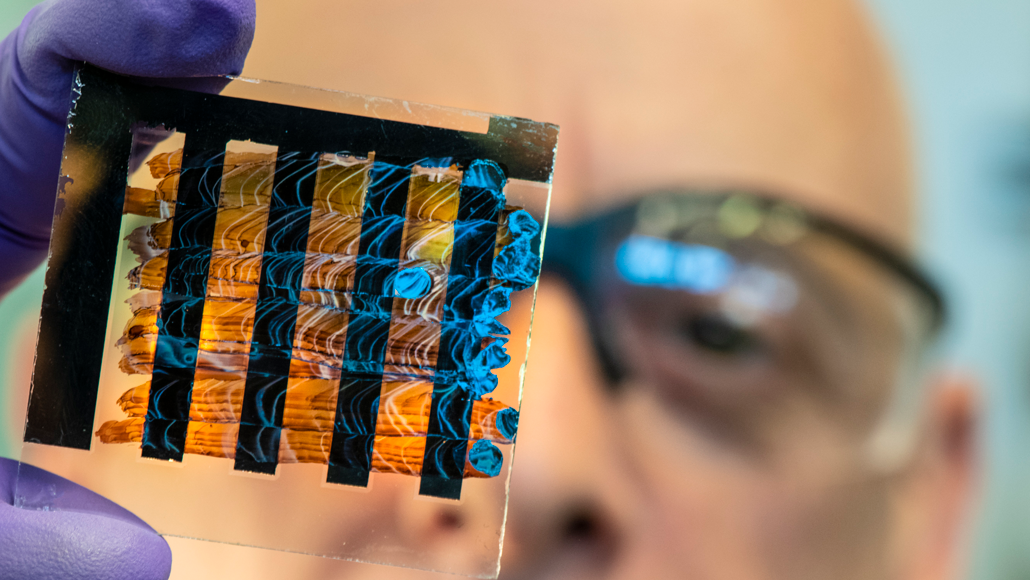

NREL researcher David Moore shows a sample solar panel painted with a crystal-laced ink.

Dennis Schroeder/NREL

Golden, Colo. — Two recent innovations are boosting prospects for a new type of solar-energy technology. Both rely on a somewhat unusual type of crystal. Panels made from them have been in the works for about 10 years. But those panels had lots of limitations. New tweaks to their design might now lead to better and potentially less costly solar panels.

Photovoltaic (FOH-toh-voal-TAY-ik) panels convert sunlight into electricity. One tweak to the materials designed for use in the new type of panel would let them tap more of the energy in sunlight. A second advance makes it easier to stack layers of this material into a sandwich. Each layer is most sensitive to different wavelengths, or portions of sunlight. Stacking the layers should harvest more incoming light.

Researchers at the National Renewable Energy Laboratory (NREL) in Golden, Colo., have been leading efforts to develop the new solar technology. They unveiled new developments in October 2019 to reporters who came to the Society of Environmental Journalists annual meeting. It was held in nearby Fort Collins, Colo.

A big industry already exists to make solar panels. Today, almost all are made from thin but rigid wafers of silicon. Silicon, the basis of sand, is cheap. But making wafers from it is not. The wafers must be manufactured in carefully controlled conditions. And the finished solar panels won’t bend.

perovskite printer

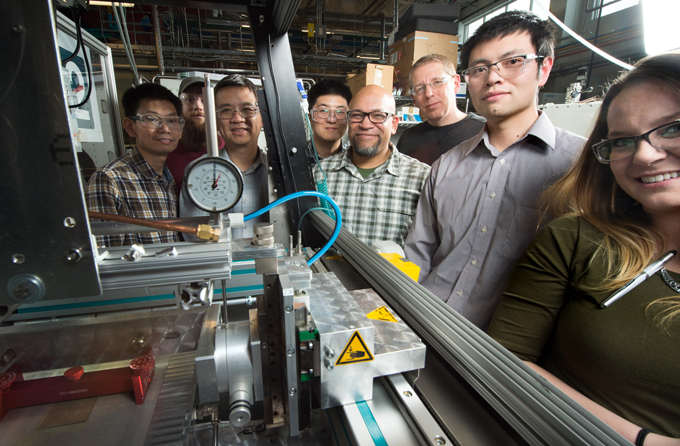

In September 2018, physicist Joe Berry (fourth from right) and others at the National Renewable Energy Laboratory reported how to make perovskite solar cells with roll-on printing. The process might one day make production of solar panels as fast as printing out newspaper pages today.Dennis Schroeder/NREL

In contrast, the new solar panels are made with manufactured crystals called perovskites (Puh-RAHV-skytes). These crystals contain some element with properties like bromine or iodine, plus a metal and other ingredients. A liquid mixture of these can be painted or rolled onto any surface.

As the liquid quickly dries, crystals form. The crystals line up in a way that makes them work well as semiconductors — materials that sometimes conduct electricity. Yet they’re much easier and quicker to make than the crystals in panels of silicon-based solar cells.

So covering sheets with these crystals might one day be as fast as printing ink onto rolling panels of paper. But instead of ending up with a newspaper, you’d end up with solar panels — ones that might be as flexible as a magazine page. Or, the perovskite liquid might be painted onto a structural surface. This could turn the sun-facing wall of a building into a massive solar panel.

Getting more efficient

Photovoltaic materials usually work well with only certain wavelengths of sunlight. Which wavelengths work best depends on what the materials are made from. Lead-based perovskite crystals work well in the deep-red to near-infrared range.

Joe Berry is a physicist at NREL. He and others knew tin-based perovskites could produce power from lower-energy infrared wavelengths. But they weren’t very efficient. And the material broke down quickly. So his team looked at where the solar cells were losing efficiency. They found that the contact points between the crystals and other materials often develop defects.

They tried a number of fixes. The one that worked best: Add a chemical called guanidinium thiocyanate (Gwahn-ih-DIN-ee-um Thy-oh-SY-uh-nayt). Biochemists often use it in the lab to protect bits of genetic material. Here, Berry’s team added it to improve the structure of crystals that touch surfaces. This tweak also let the solar cells harvest sunlight for a bit longer. Both innovations boosted the ability of the solar panels to produce electricity.

“There was a lot of stuff that we tried,” Berry says. But such trial and error, he adds, “was required to come up with the ultimate solution.” Crystal panels made with just the tweaked tin material were 20.5 percent efficient in NREL’s tests. That means they harvested one-fifth of the incoming sunlight.

Double-decker sandwiches

The team also tested multi-layered solar panels. One layer was made from the improved tin-based crystals. A second, lead-based layer was most sensitive to other wavelengths of light. The layers work in tandem. That is, they work together, side-by-side. This upped the panel’s overall efficiency to between 23 and 25 percent. Until then, the best a tin-lead combo had been was 16 to 17 percent efficient, says David Moore. He’s a materials scientist, also at NREL. The NREL team shared its new data in the May 3, 2019, issue of Science.

Moore, Berry and others also tackled another important problem. Most combo solar panels with the new crystals were made by pouring the solution for the top layer right over the bottom material. But often the liquid for the top layer messed up the bottom layer.

perovskite solutions
NREL researchers Ashley Marshall, Erin Sanehira and Joey Luther show liquids containing nanoscale bits of perovskite compounds. These perovskites glow red or green when exposed to ultraviolet light.Dennis Schroeder/NREL

To solve the problem, the researchers added a nanometer-thick divider between the two layers. (A nanometer is one billionth of a meter.) They chose a polymer — a chemical made from long chains of repeating groups of atoms. (Many plastics are polymers.) This nano-divider helped prevent damage to the bottom layer as the top perovskite layer went on. The NREL team described this fix in the September 18, 2019, issue of Joule.

Both studies “make great progress in high-performance tandem solar cells,” says Zhiqun Lin. This materials scientist at the Georgia Institute of Technology in Atlanta did not work on either project. Tweaking the recipe for the tin-based crystals gave them more time to harvest sunlight. That was “novel” and should make them more “practical,” Lin says. He also lauds the nano-divider for overcoming that second problem in layered solar panels.

Step by step

But big challenges still remain. “The biggest roadblock,” says Moore, is their lifetime. Most silicon solar panels now last 20 years or more. Perovskite solar cells are not so hardy. Moisture, oxygen damage and other factors gradually lower the crystals’ efficiency. Over time, they may stop working. Only a few years ago, these materials would break down after a few hours. Thanks to advances, now they can last about a year. But they have a long way to go to become practical for widespread use.

Lin recently found a way to boost the lifetime for light-emitting diodes (LEDs) made from perovskites. His team jacketed them with a silica shell and plastic hair-like structures. This coating repelled water. Perhaps a similar material might help the solar panels, he suggests.

Moore points out that science almost always moves slowly, “by a step-by-step process.” But there’s lots of motivation to work toward better and longer-lasting solar panels. They tend to be cleaner than fossil fuels and better for the environment. Beyond that, energy experts forecast that the world will need almost 50 percent more energy by 2050.  With innovation, flexible solar technologies might one day play a big role there.

This is one in a series presenting news on technology and innovation, made possible with generous support from the Lemelson Foundation.
